What Is Stroke in Tattoo Machines?
Stroke vs Active Span — The Hidden Mechanics Behind Every Line
Tattoo machine stroke — not the medical kind that paralyzes half your body, although some tattoo artists might feel that way trying to understand it. You’ve probably searched for a clear answer, yet most explanations remain vague or contradictory.
In this article, we’ll finally clear up the confusion around this Stroke guy and define what really happens inside your tattoo machine.
Even experienced artists struggle to define stroke correctly. The reason is simple: no one explained it clearly enough, and those who could didn’t have the reach to make it part of everyday tattoo education.
As a result, many artists keep buying new machines, hoping the next one will magically fix their “stroke problem.” However, stroke is only one part of a larger motion system that defines how your needle truly behaves.
To understand it fully, let’s explore the five mechanical players that translate motor power into ink precision. From this point forward, each component you read about connects to the next.
Tattoo Machine Stroke Components: The Five Players That Define the Motion
- Stroke
- Push Rod
- Plunger Stem (REBEL Term)
- Grip with Adjustable Capabilities
- Active and Resting Span = Active Range (REBEL Term)
Together, these five parts form a complete motion chain. Every needle movement begins with the stroke and ends at the cartridge tip with the Active Span.
Therefore, let’s follow that motion step by step. If you want to understand how tattoo cartridges changed the way stroke and motion behave, read Part 8 — Tattoo Needles vs. Tattoo Cartridges: What Is the Difference? in The Rebellion Reads series.
1. Understanding Tattoo Machine Stroke
In simple terms, stroke is the travel distance of the drive pin — from its highest to lowest point — measured in millimeters (mm). It defines how far your needle moves per cycle.
However, it does not determine how much of the needle extends out from the tattoo cartridge tip to work with.
Stroke motion is created by an assembly that includes:

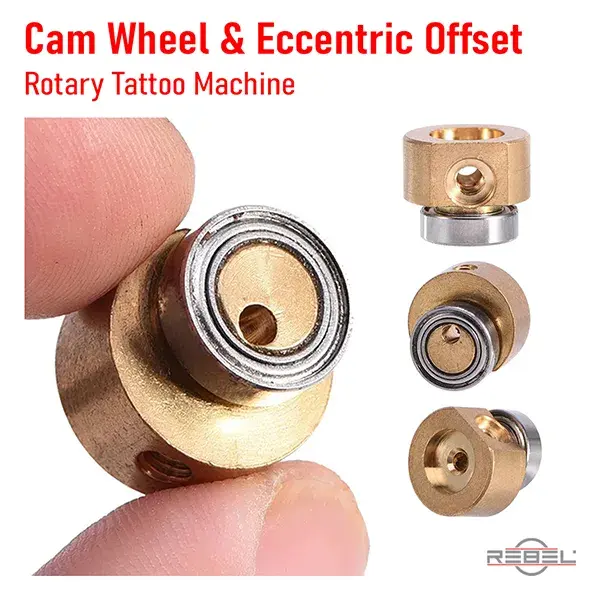

- Cam Wheel – the rotating disc that defines motion path.
- Eccentric Offset – half of the stroke distance that determines stroke length.
- Counter Balance – stabilizes spin and reduces vibration.
- Drive Pin – where the Push Rod is fastened, transferring motion outward.
Ultimately, stroke sets the foundation for every other movement. Everything that follows either carries or modifies that motion.
Together, these two views show how the motor’s rotary motion transforms into a linear stroke — the mechanical heart of every modern rotary tattoo machine.

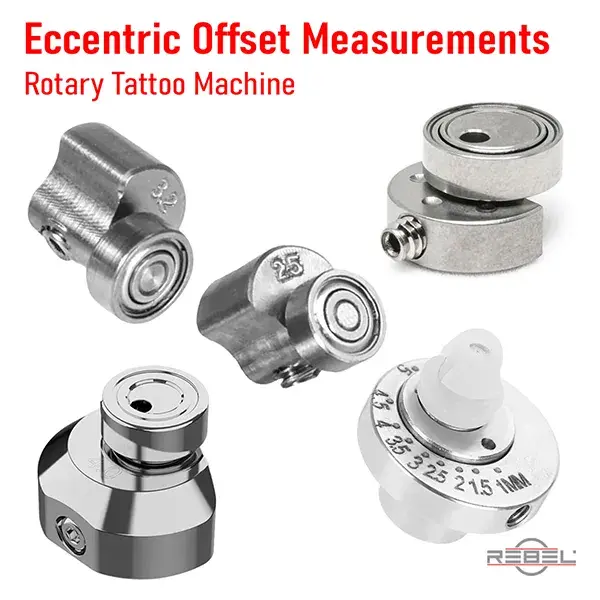

The stroke distance is measured in millimeters, and even the smallest change matters. When we talk about 2.5 mm or 4.0 mm, we’re literally referring to fractions of a grain of rice — yet that tiny difference can create a dramatic change in performance.
That’s why precision machining is critical. The eccentric offset, bearing alignment, and drive pin positioning must remain within micron-level tolerances to ensure a smooth and consistent stroke. (For reference, a micron is one-thousandth of a millimeter — that’s the scale used to measure a single strand of human hair.) Precision like this isn’t accidental — it’s engineered. See how it’s achieved in Part 10 — Tattoo Cartridge Manufacturing.
Typical Stroke Ranges
-
- Short stroke (≤ 2.5 mm): soft, fast, ideal for blending and shading.
- Medium stroke (~ 3.5 mm): balanced and reliable for most work.
- Long stroke (4.0 – 4.5 mm): strong and deliberate for lining and packing.
The cam wheel, eccentric offset, counterbalance, and drive pin together generate the stroke motion.

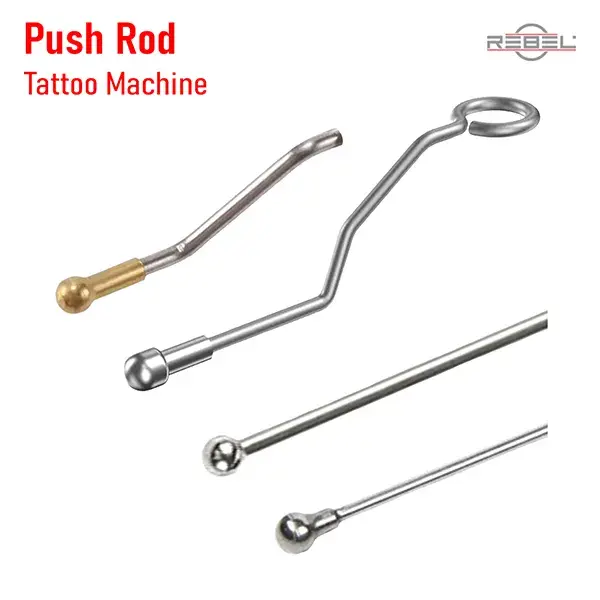

2. How the Push Rod Transfers Tattoo Machine Stroke Energy
The Push Rod — sometimes called the Drive Bar — connects the Drive Pin to the Plunger Stem. It converts circular motor motion into a straight, reciprocating one and delivers that force and distance into the grip.
Importantly, it doesn’t increase or reduce stroke length; it simply transfers it faithfully.
If a clutch or “give” system is present, that’s where softness occurs — not in the rod itself.
Think of the push rod as the drummer’s stick: it keeps perfect rhythm between the cam’s rotation and the needle’s motion.
As a result, every cycle from the motor becomes a predictable push at the tattoo cartridge.

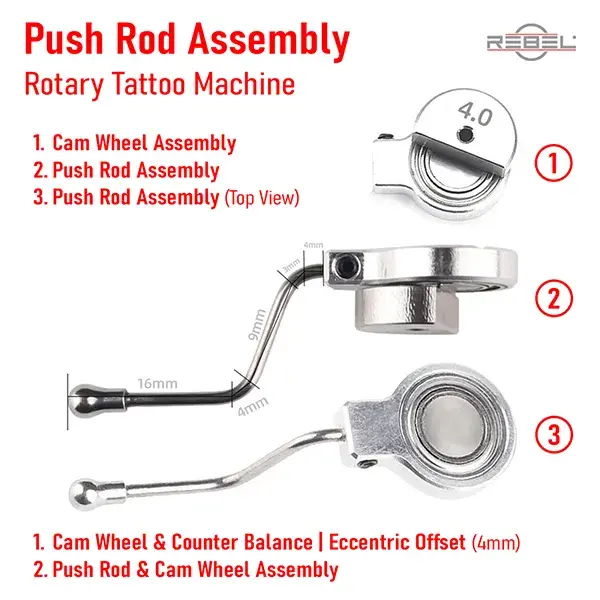

The Push Rod Assembly converts the rotary motion into linear stroke movement.

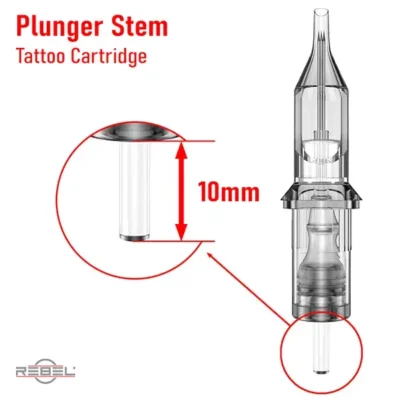

3. Plunger Stem (REBEL Term)
The Plunger Stem is the visible part of the tattoo cartridge plunger assembly that extends above the membrane cap.
At this point, internal motion finally becomes visible and measurable.
REBEL defines it this way because it’s the conversion point where mechanical stroke becomes visible needle travel — the bridge between precision engineering and artistry.
Because of that, its length ensures consistent stroke delivery and defines the cartridge’s maximum Active Span.
The Plunger Stem — where mechanical stroke converts to visible needle motion.

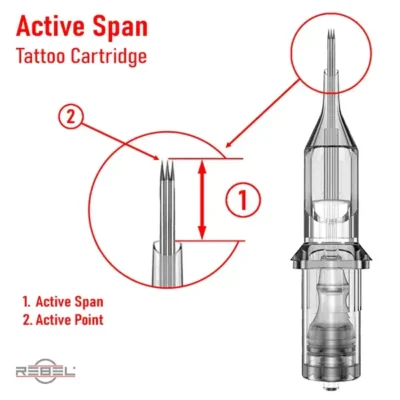

4. Adjusting Active Span Without Changing Tattoo Machine Stroke
This is the artist’s control zone. By twisting the adjustable grip, you micro-adjust how far the needle projects, controlling the Active Span, which can never be longer than the machine’s built-in stroke length.
However, this adjustment doesn’t change the stroke itself. Instead, it alters the visible portion of the motion. In practice, you’re customizing your Active Span preference, not the stroke.
For example:
-
- Lining: 3–5 mm
- Shading: 1–3 mm
- Packing: around 3 mm
The grip accomplishes this by repositioning the Plunger Stem inside the cartridge.
With a 10 mm plunger stem and a 5 mm stroke, the grip provides about 5 mm of usable adjustment before the needle head appears at the tip.
Therefore, twisting the grip fine-tunes your comfort and precision — but it cannot change the built-in mechanical limits.

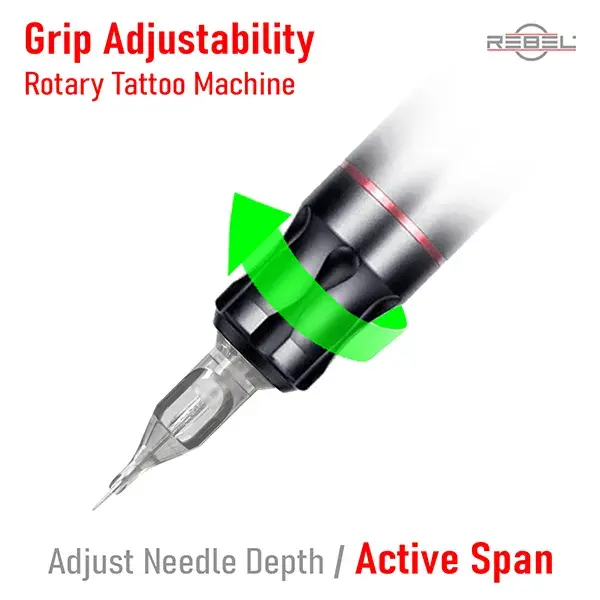

Rotating the grip micro-adjusts the Active Span within the machine’s stroke limit.

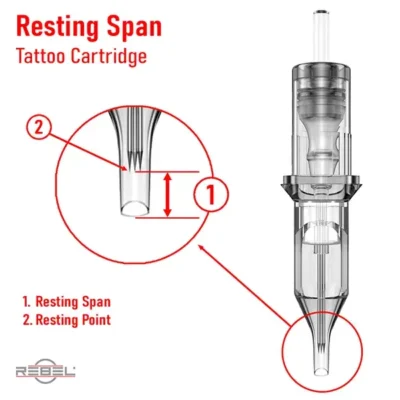

5. Resting Span (REBEL Term)
The Resting Span is the measurable distance between the Resting Point (needle tip fully retracted) and the cartridge opening.
You can observe it by holding the cartridge freely and watching how far the needle sits inside when at rest.
This distance matters because it defines how much the needle must travel before it becomes exposed and ready to hit the skin. Therefore, it directly affects both Active Span and overall needle depth.
In other words, Resting Span sets the stage before the needle even starts to move.
The Resting Span — the needle’s distance from the cartridge tip in its retracted state.

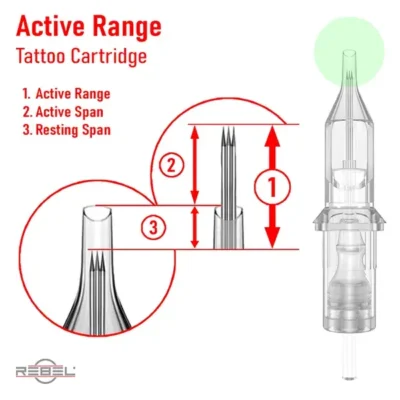

Stroke vs Active Range
While Stroke defines internal mechanical travel, Active Range represents the total external needle motion — from its resting point to its full projection.
Consequently, the Active Range equals the stroke delivered through the system, minus internal mechanical losses like membrane flex or grip geometry, but are not measurable with naked eye.

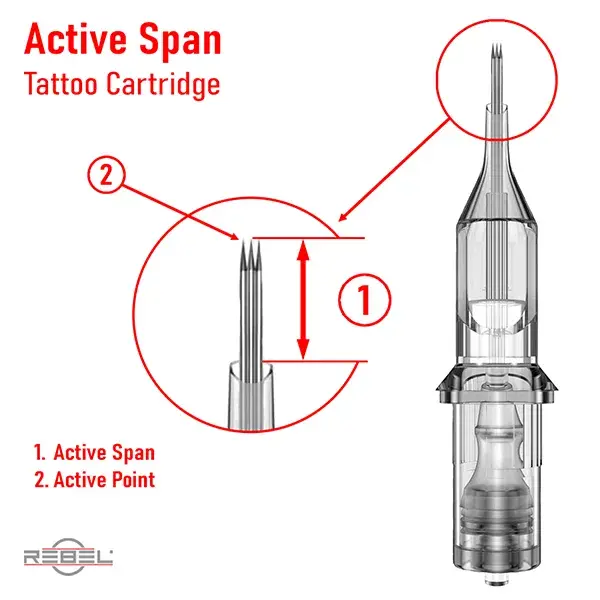

Within this range, the visible portion beyond the cartridge tip is the Active Span — the part the artist actually tattoos with.
Think of Stroke as the engine’s piston travel, Active Range as the wheel rotation, and Active Span as the tire’s contact patch — the part that actually touches the skin.
Active Range = Stroke length delivered to the needle; Active Span = the visible working distance.
Connecting the Motion
Now that we’ve broken down every part, it’s time to connect the dots.
The Stroke begins inside the motor, travels through the Push Rod, and manifests as the Active Range at the cartridge tip. The position of the Active Range determines the Active Span that tattoo artist tattoo with.
The REBEL answer:
Stroke creates the potential — Active Span delivers the performance.

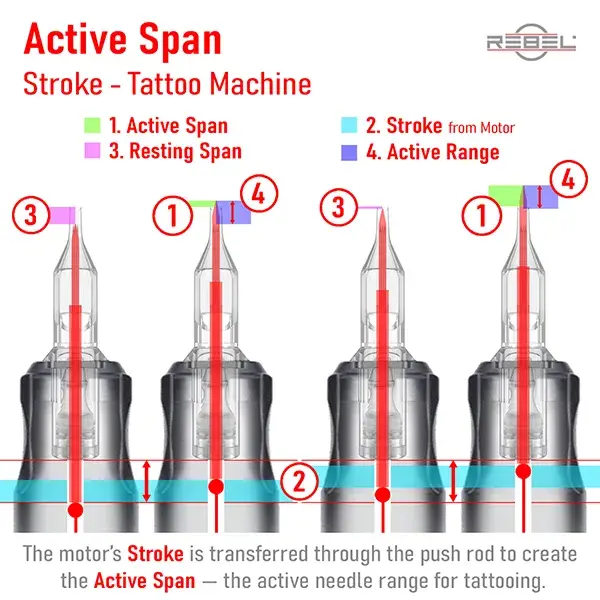

The motor’s Stroke transfers through the Push Rod to create the Active Span — the effective needle motion used for tattooing.
What Determines the Active Span
Assume a 5 mm stroke machine. Each element contributes as follows:
| Component | Function | Notes |
|---|---|---|
| Tattoo Machine Stroke | Defines internal motion | Fixed 5 mm — the motion source |
| Push Rod | Transfers energy | Delivers the same 5 mm |
| Grip Adjustability | Fine-tunes visible motion | Sets Active Span |
| Resting Span | Resting needle tip position inside cartridge | Personal preference |
As a result, the grip redistributes that motion, deciding how much of the total Active Range you actually use.
Each twist of the grip has a direct, measurable, and predictable outcome.
Understanding It Physically
When you manually press a cartridge plunger, you’re seeing its full mechanical potential — usually around 10 mm.
Your machine only uses 5 mm of that as stroke. By twisting the grip, you shift that 5 mm window along the plunger’s total length, effectively changing the Resting Point while keeping stroke constant.
According to REBEL testing, most cartridges divide this 10 mm range roughly in half:
-
- 5 mm Resting Span
- 5 mm Active Span
Understanding this relationship removes guesswork and provides total control.
When you extend the Active Span to see more of the needle while lining, you’re reducing the Resting Span — positioning the needle closer to the tip.
For instance, reducing Resting Span by 2 mm leaves 3 mm internal + 5 mm stroke = about 2 mm visible Active Span.
Consequently, your adjustments are no longer random — they’re mechanical choices.
Adjusting the grip shifts the Resting Point and modifies visible Active Span.
Tattoo Machine Stroke In Short
| Term | Definition |
|---|---|
| Stroke | Internal motor travel distance |
| Active Range | Total needle movement (Resting + Active Span) |
| Active Span | Visible needle projection beyond cartridge tip |
| Resting Span | Needle retraction distance at rest |
| Push Rod | Transfers motion from motor to cartridge |
| Grip Adjustability | Fine-tunes visible Active Span |
In short, every line you pull results from these six forces working in harmony.
Conclusion
You can’t have a longer Active Span than your machine’s built-in stroke allows.
A 5 mm-stroke machine can perform shorter Active Spans — but never the reverse.
If your machine has a 2.5 mm stroke, it won’t stretch to 7 mm. It’s metal, not rubber. 🙂
So why do manufacturers sell machines with different strokes?
Because they supply demand. As long as artists misunderstand stroke mechanics but keep buying, companies will keep repackaging the same product — 2.5, 3.5, and 5 mm versions — with fresh labels.
An informed artist doesn’t need ten machines. Usually, one or two do the job — unless you’re collecting, not tattooing. Every line you pull results from these five mechanical forces working in harmony — from Stroke to Active Span. Once you understand them, you stop guessing and start controlling every pass with intent.
How many machines do you actually use for one tattoo?
Just think about it.
